MSI MAG B660M Mortar WiFi DDR4 Mainboard ATX 12th Gen Intel SPATIUM M480 PCIe 4.0 NVMe M.2 1TB SSD
MAG B660M Mortar WiFi DDR4 Mainboard ATX 12th Gen Intel SPATIUM M480 PCIe 4.0 NVMe M.2 1TB SSD
168,99 €
Nicht mehr verfügbar
Beschreibung
MSI MAG B660M MORTAR WIFI DDR4. Prozessorhersteller: Intel, Prozessorsockel: LGA 1700, Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, PCI Express 4.0, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD, RAID Level: 0, 1, 5, 10. Parallele Verarbeitungstechnologie: Crossfire. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, Top WLAN-Standard: Wi-Fi 6 (802.11ax), WLAN-Standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Technische Daten
|
Prozessor
|
||
| Prozessorhersteller | Intel | |
| Prozessorsockel | LGA 1700 | |
| Kompatible Prozessoren | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold | |
| Unterstützte Prozessorsteckplätze | LGA 1700 | |
|
Speicher
|
||
| Unterstützte Arbeitsspeicher | DDR4-SDRAM | |
| Anzahl der Speichersteckplätze | 4 | |
| RAM-Speicher maximal | 128 GB | |
| Arbeitsspeicher Typ | DIMM | |
| Speicherkanäle | Dual-channel | |
| Ohne ECC | Ja | |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4400,4600,4800 MHz | |
|
Gewicht und Abmessungen
|
||
| Breite | 244 mm | |
| Tiefe | 244 mm | |
| Höhe | 65 mm | |
|
Netzwerk
|
||
| WLAN | Ja | |
| Eingebauter Ethernet-Anschluss | Ja | |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet | |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) | |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) | |
| Bluetooth | Ja | |
| Bluetooth-Version | 5.2 | |
|
Interne E/A-Anschlüsse
|
||
| Anzahl USB 2.0 Schnittstellen | 2 | |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 | |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 | |
| SATA III Anschlüsse | 6 | |
| Front Panel Audiostecker | Ja | |
| ATX Stromstecker (24-pol.) | Ja | |
| CPU Ventilatorstecker | Ja | |
| Zahl der Chassisventilatorstecker | 2 | |
| EPS Stromstecker (8-pin) | Ja | |
|

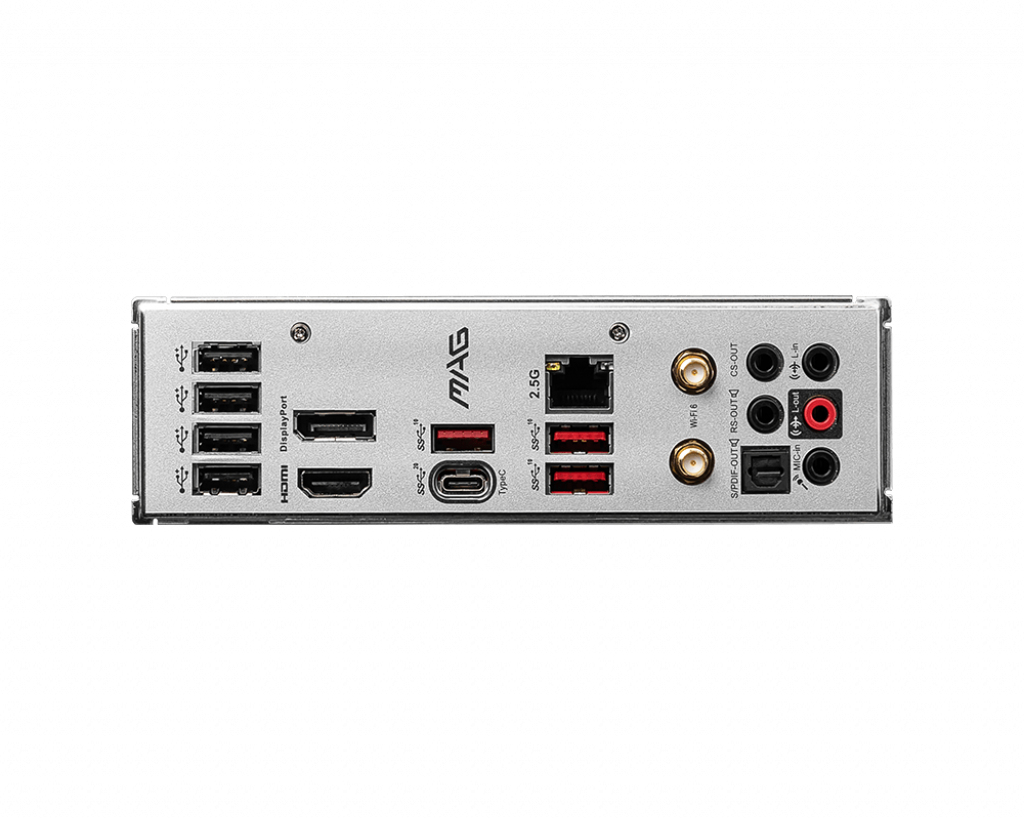

E/A-Anschlüsse auf der Rückseite
|
||
| Anzahl USB 2.0 Anschlüsse | 4 | |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 3 | |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 | |
| Anzahl HDMI-Anschlüsse | 1 | |
| Anzahl DisplayPort Anschlüsse | 1 | |
| Mikrofon-Eingang | Ja | |
|
Speicher-Controller
|
||
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, PCI Express 4.0, SATA III | |
| Unterstützte Speicherlaufwerke | HDD & SSD | |
| RAID-Unterstützung | Ja | |
| RAID Level | 0, 1, 5, 10 | |
|
Erweiterungssteckplätze
|
||
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 | |
| PCI-Express x16-Slots | 2 | |
|
Sonstige Funktionen
|
||
| Gewicht | 1 kg | |
|
Grafik
|
||
| Parallele Verarbeitungstechnologie | Crossfire | |
|
Merkmale
|
||
| Komponente für | PC | |
| Motherboardformfaktor | micro ATX | |
| Motherboard Chipsatz Familie | Intel | |
| Motherboard Chipsatz | Intel B660 | |
| Audio Kanäle | 7.1 Kanäle | |
| Warentarifnummer (HS) | 84733020 | |
