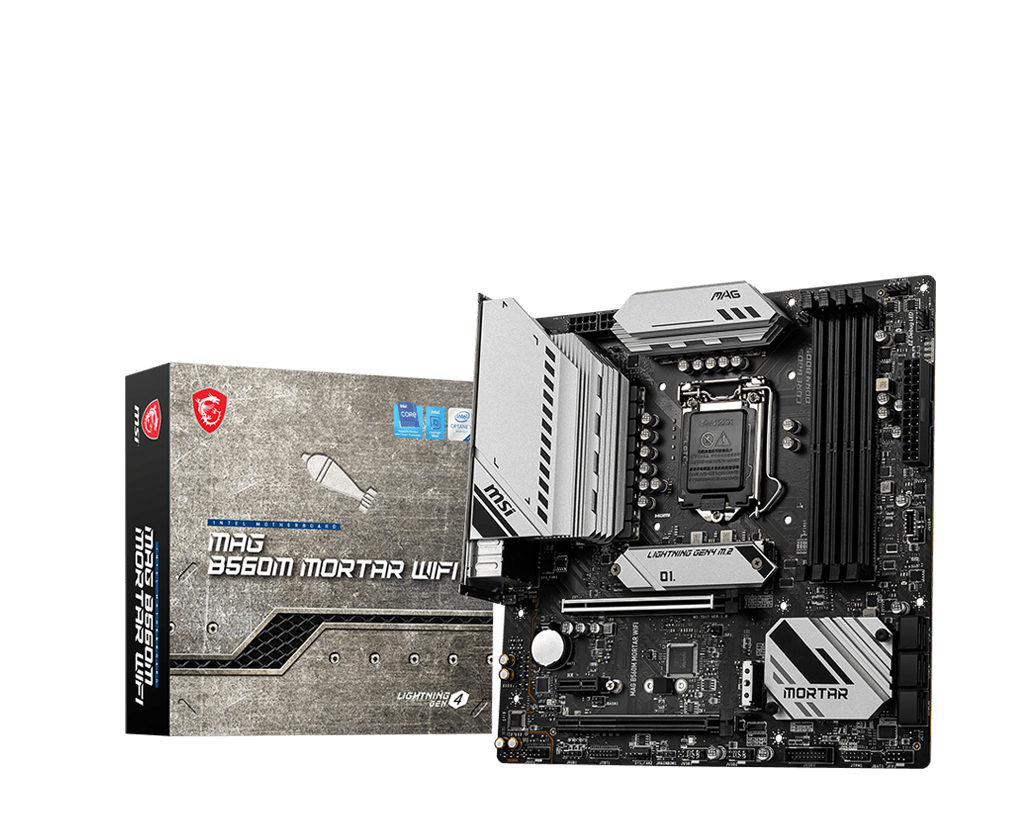

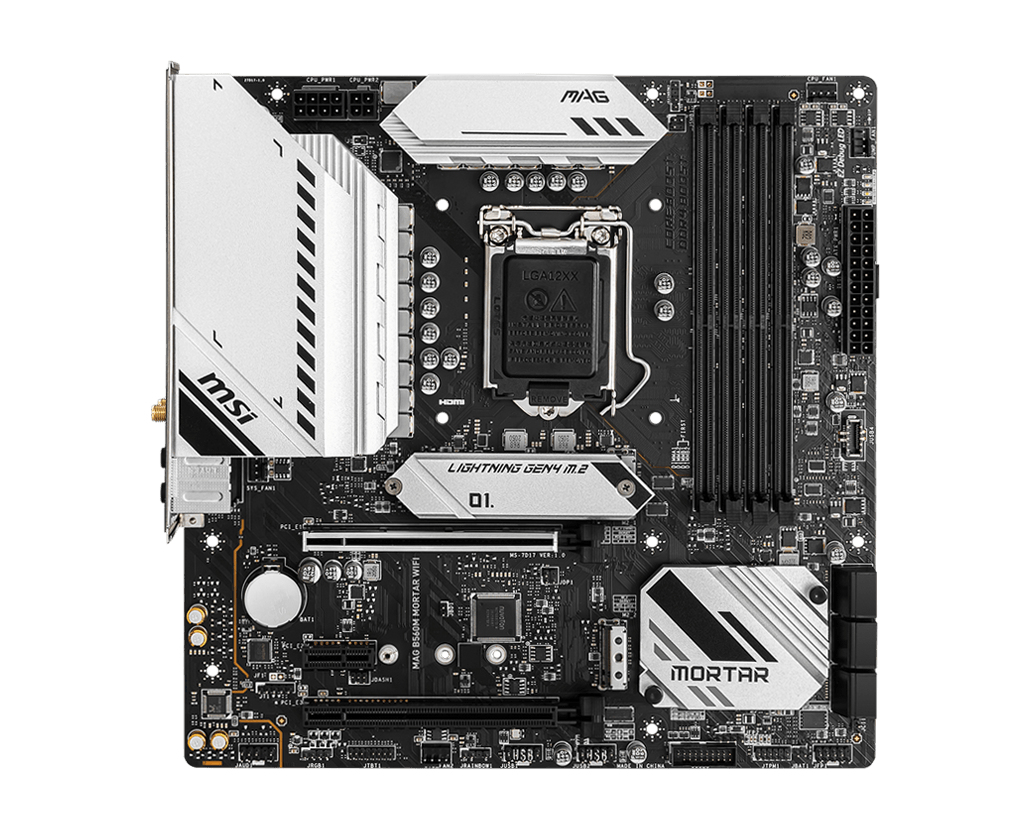

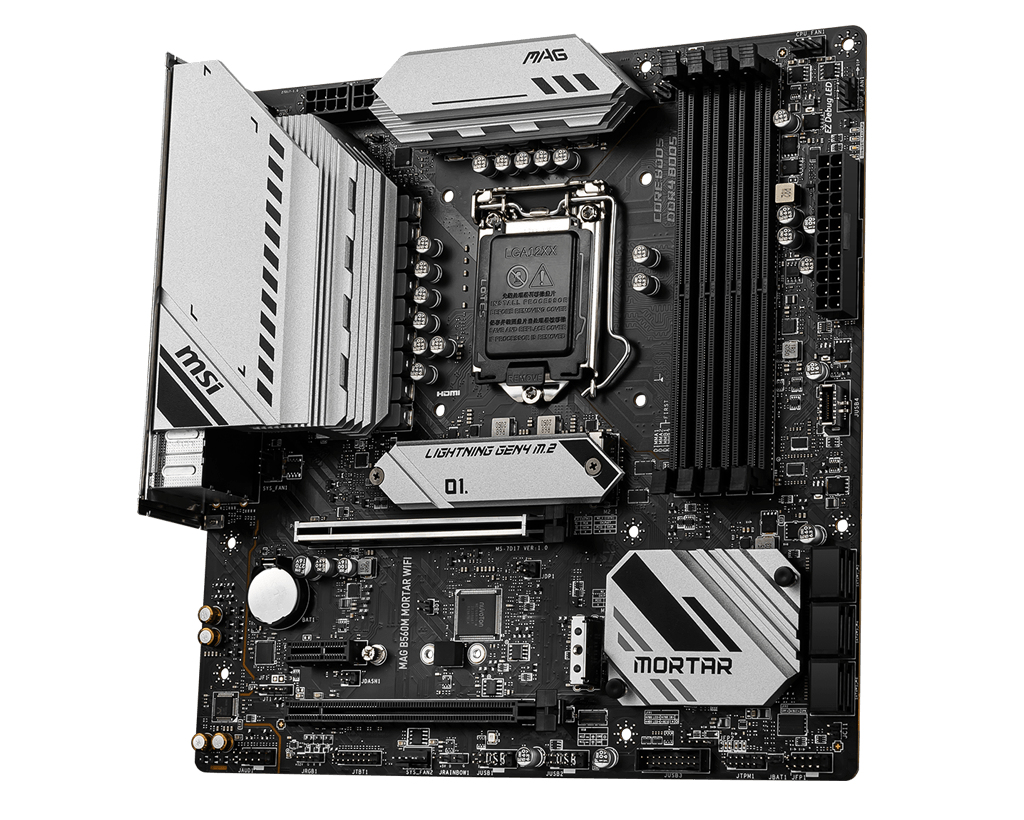

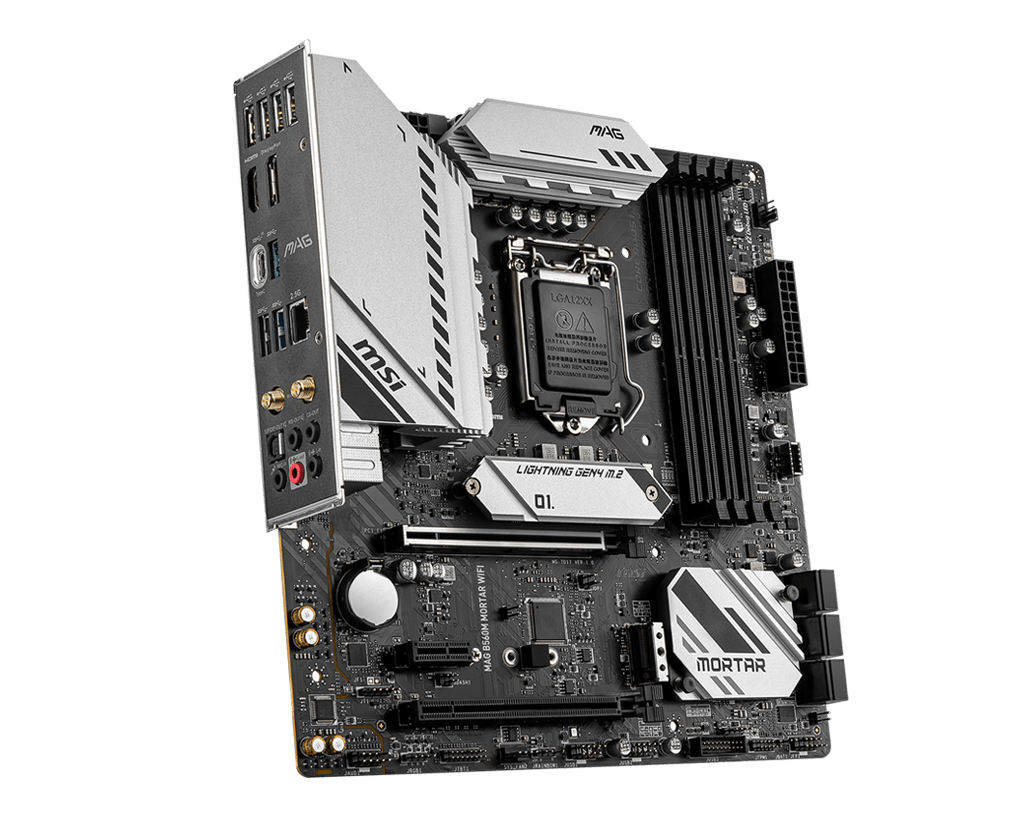

MSI MAG B560M MORTAR WIFI Motherboard Intel B560 LGA 1200 micro ATX
MAG B560M MORTAR WIFI Motherboard Intel B560 LGA 1200 micro ATX
180,99 €
Nicht mehr verfügbar
Beschreibung
MSI MAG B560M MORTAR WIFI. Prozessorhersteller: Intel, Prozessorsockel: LGA 1200, Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 128 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2, SATA III, Unterstützte Speicherlaufwerke: HDD & SSD. Parallele Verarbeitungstechnologie: 2-Way CrossFireX. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet, LAN-Controller: Realtek RTL8125B, Top WLAN-Standard: Wi-Fi 6 (802.11ax)
Technische Daten
| Prozessor | ||
| Prozessorhersteller | Intel | |
| Prozessorsockel | LGA 1200 | |
| Kompatible Prozessoren | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® | |
| Speicher | ||
| Unterstützte Arbeitsspeicher | DDR4-SDRAM | |
| Anzahl der Speichersteckplätze | 4 | |
| RAM-Speicher maximal | 128 GB | |
| Arbeitsspeicher Typ | DIMM | |
| Speicherkanäle | Zweikanalig | |
| Ohne ECC | Ja | |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2666,2933,3200 MHz | |
| Unbuffered Speicher | Ja | |
| Gewicht und Abmessungen | ||
| Breite | 244 mm | |
| Tiefe | 244 mm | |
| Höhe | 80 mm | |
| Netzwerk | ||
| WLAN | Ja | |
| Eingebauter Ethernet-Anschluss | Ja | |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet | |
| LAN-Controller | Realtek RTL8125B | |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) | |
| WLAN-Standards | Wi-Fi 6E (802.11ax) | |
| WLAN-Controllermodell | Intel Wi-Fi 6E AX210 | |
| Bluetooth | Ja | |
| Bluetooth-Version | 5.2 | |
| Interne E/A-Anschlüsse | ||
| Anzahl USB 2.0 Schnittstellen | 2 | |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 | |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 | |
| SATA III Anschlüsse | 6 | |
| Front Panel Audiostecker | Ja | |
| ATX Stromstecker (24-pol.) | Ja | |
| CPU Ventilatorstecker | Ja | |
| Chassis Intrusion Stecker | Ja | |
| TPM-Verbinder | Ja | |
| Thunderbolt-Stiftleisten | 1 | |
| 12-V-Stromanschluss | Ja | |

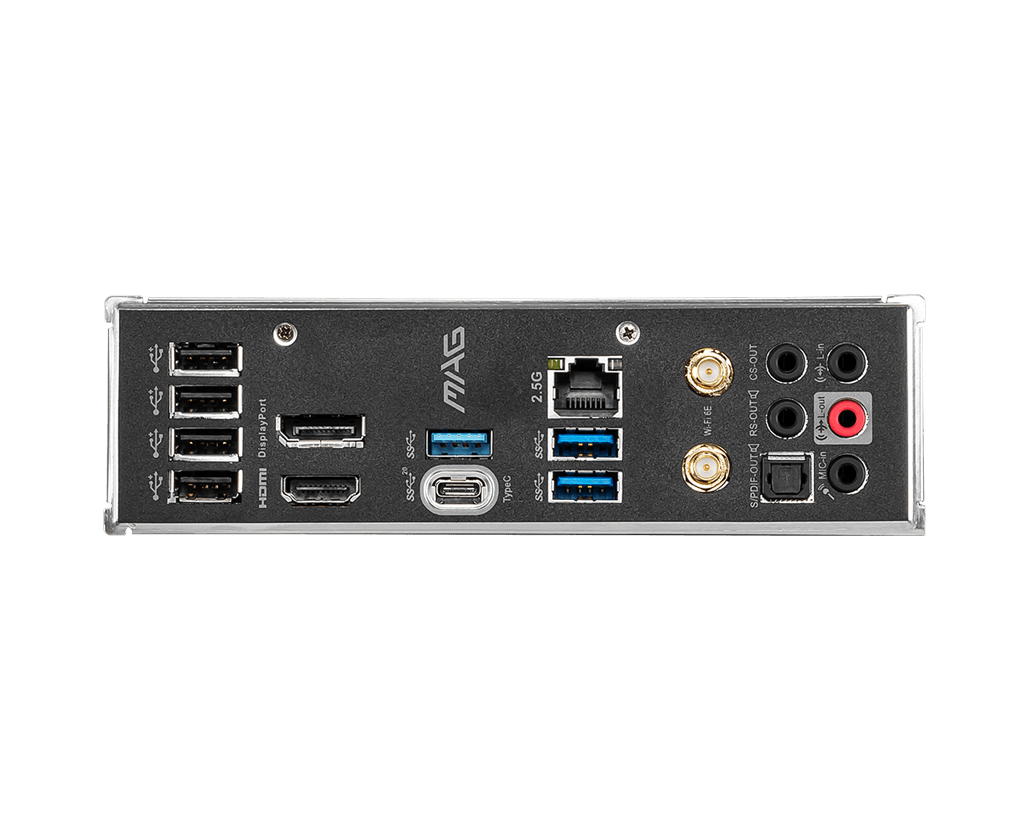

| E/A-Anschlüsse auf der Rückseite | ||
| Anzahl USB 2.0 Anschlüsse | 4 | |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 3 | |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 | |
| Anzahl HDMI-Anschlüsse | 1 | |
| Anzahl DisplayPort Anschlüsse | 1 | |
| S/PDIF-Ausgang | Ja | |
| Speicher-Controller | ||
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III | |
| Unterstützte Speicherlaufwerke | HDD & SSD | |
| Erweiterungssteckplätze | ||
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 | |
| PCI-Express x16-Slots | 2 | |
| Anzahl der M.2 (M)-Steckplätze | 2 | |
| BIOS | ||
| BIOS-Typ | UEFI AMI | |
| Clear CMOS-Jumper | Ja | |
| Sonstige Funktionen | ||
| Gewicht | 1 kg | |
| Grafik | ||
| Parallele Verarbeitungstechnologie | 2-Way CrossFireX | |
| Merkmale | ||
| Komponente für | PC | |
| Motherboardformfaktor | micro ATX | |
| Motherboard Chipsatz Familie | Intel | |
| Motherboard Chipsatz | Intel B560 | |
| Audio Kanäle | 7.1 Kanäle | |
| Audio-Chip | Realtek ALC897 | |
| Logistikdaten | ||
| Warentarifnummer (HS) | 84733020 | |
